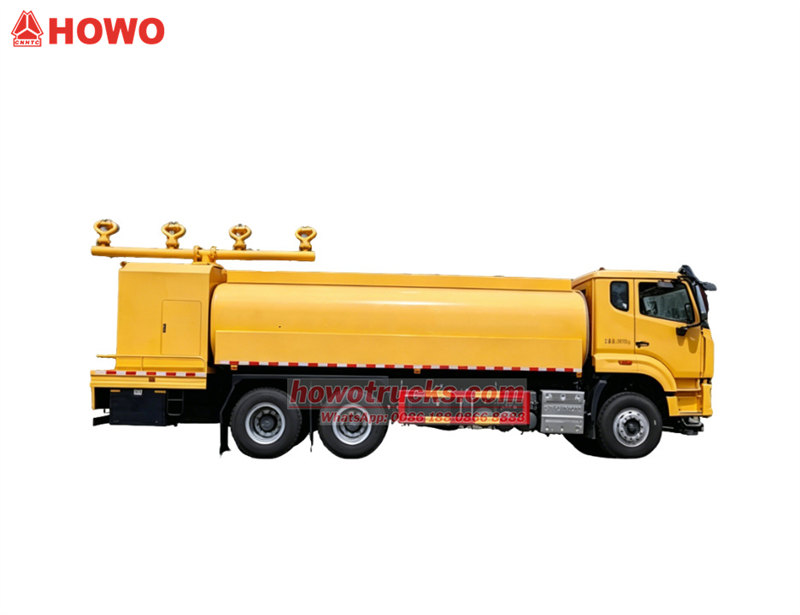

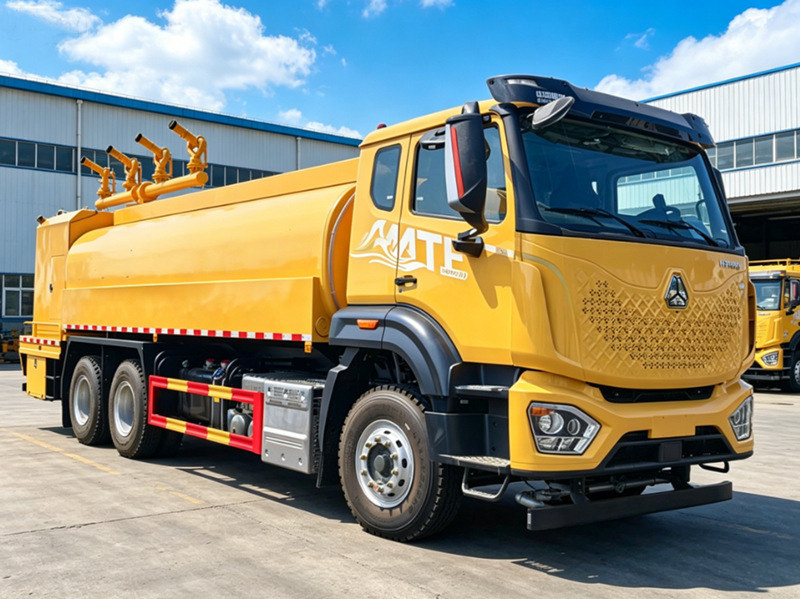

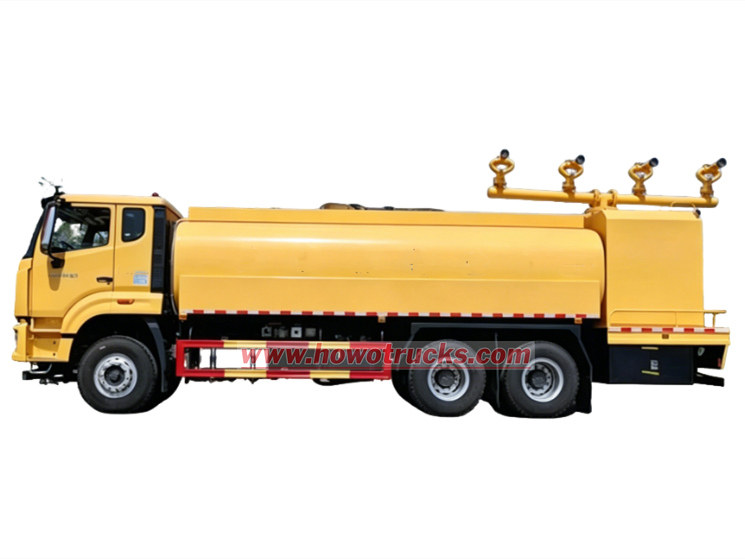

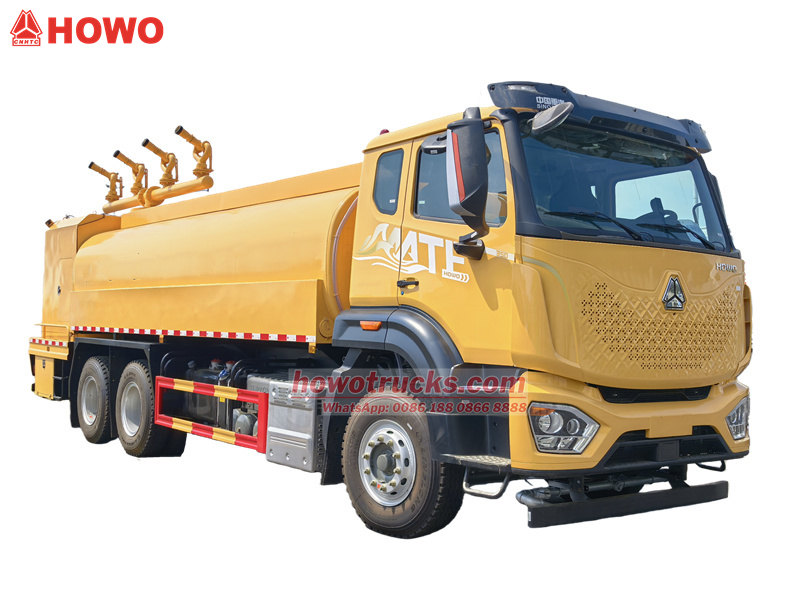

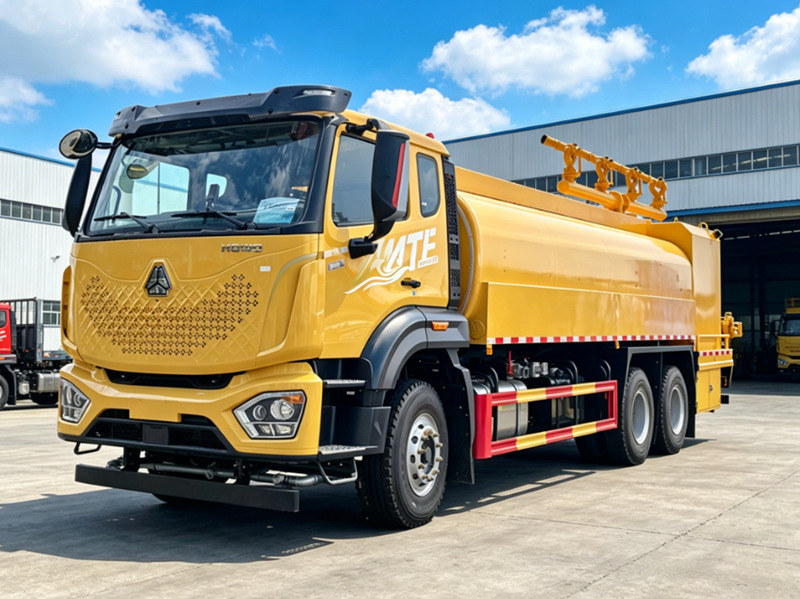

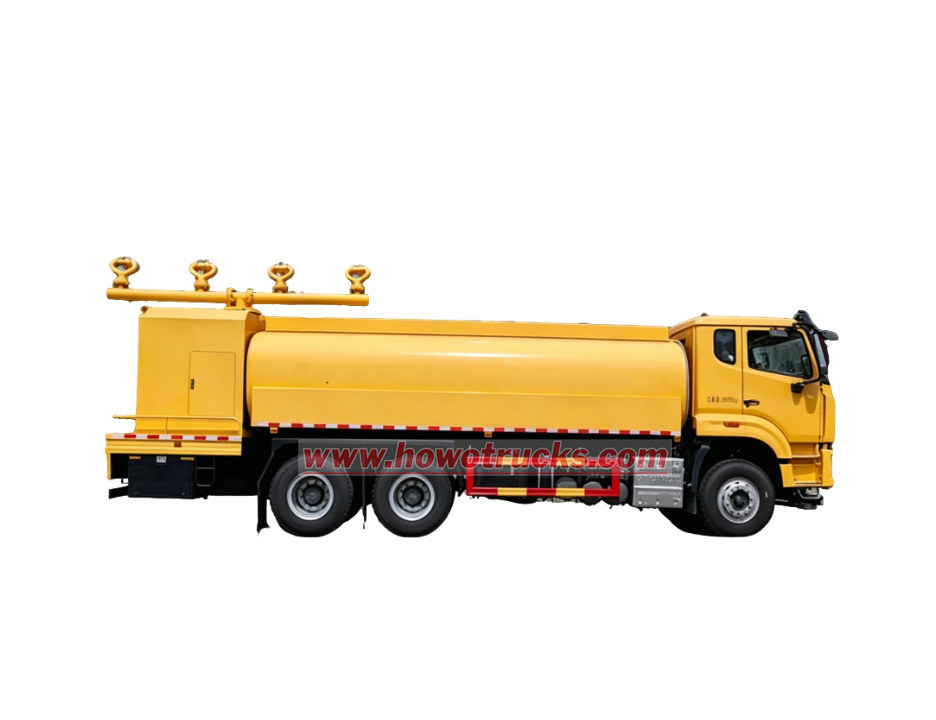

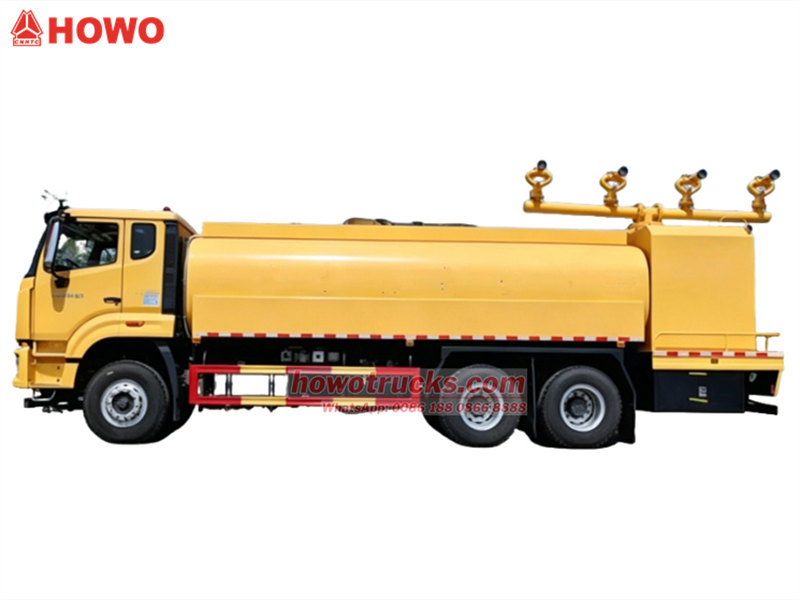

HOWO multi-function dust suppression water tanker truck

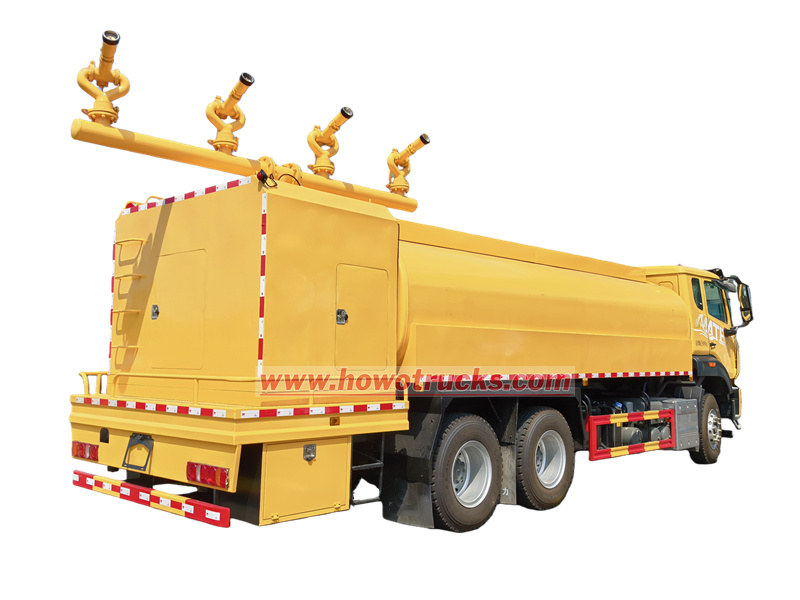

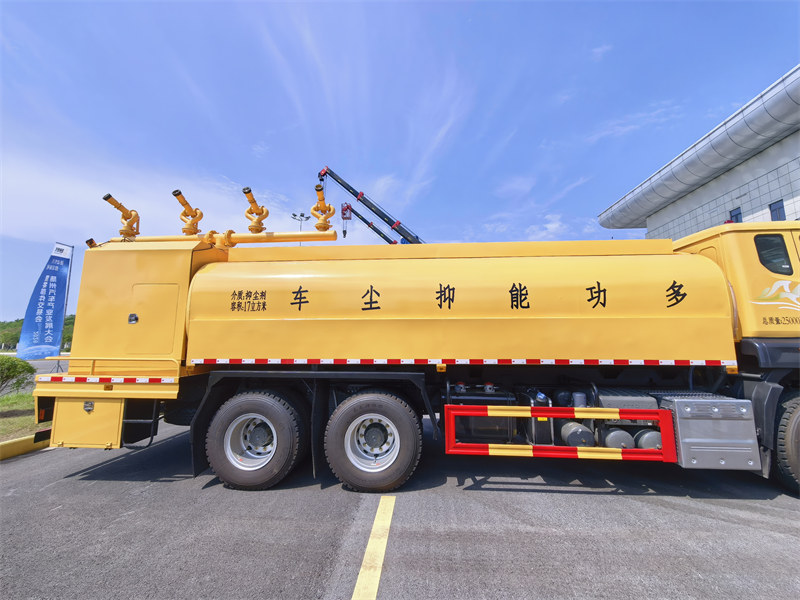

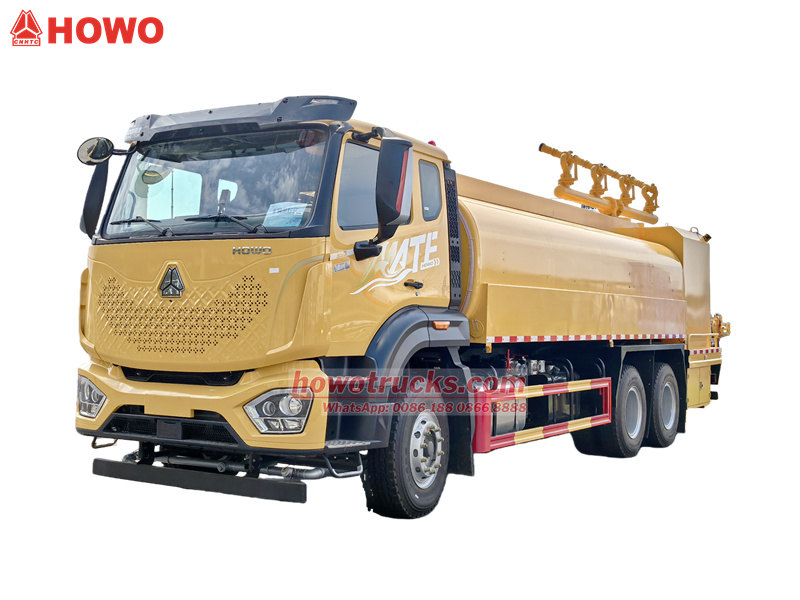

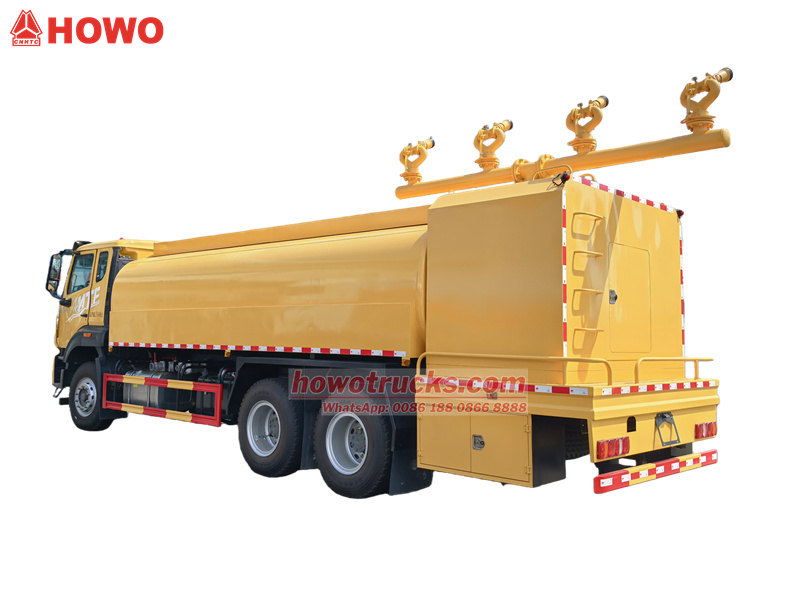

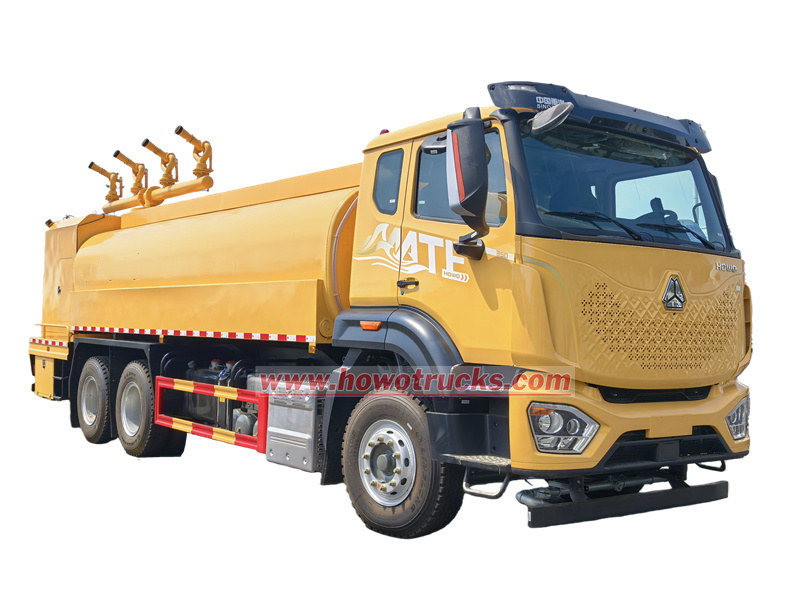

HOWO multi-function dust suppression water tanker truck.Purpose-built for harsh mine sites to eliminate heavy dust during mining & haulage operations, with extra functions for site washing and equipment cooling.Built on reliable HOWO 6x4 heavy-duty chassis, upgraded for superior off-road capability and stable heavy-load performance vs standard sanitation water trucks.Fitted with a large 17,000L water tank + hydraulic rotatable multi-angle water cannons, delivering long working hours and wide coverage for all-around mine dust control.An essential heavy special vehicle for mine environmental management.
Pracovná kapacita :
20000 litersTyp kabíny :
HOWO single cabin with sleeper and A/CPohonný systém :
6×4Rázvor (mm) :
10750x2550x3650 mmŠpecifické pre motor :
350HP/MC07H.35-61Prevodovka :
HW19710, 10 Forward & 2ReversePredná náprava (kg) :
7.5TZadná náprava (kg) :
13 T*2HOWO multi-function dust suppression water tanker truck.Purpose-built for harsh mine sites to eliminate heavy dust during mining & haulage operations, with extra functions for site washing and equipment cooling.Built on reliable HOWO 6x4 heavy-duty chassis, upgraded for superior off-road capability and stable heavy-load performance vs standard sanitation water trucks.Fitted with a large 17,000L water tank + hydraulic rotatable multi-angle water cannons, delivering long working hours and wide coverage for all-around mine dust control.An essential heavy special vehicle for mine environmental management.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS Group
Features:
1.High flow & long spraying range: Flow ≥6m³/min, effective shooting distance 70–80m
2.Efficient continuous operation: Single spray lasts 2–3 mins for high productivity
3.Hydraulic drive system: Easy operation, low failure rate & minimal maintenance cost
4.Tank capacity:17m³ large tank, supports secondary blasting dust suppression


|
HOWO multi-function dust suppression water tanker truck |
|||
|
Main parameter |
Overall dimension(LxWxH) |
10750x2550x3650 mm |
|
|
Wheel base(mm) |
4600+1350mm |
||
|
Driving Type |
6×4,left hand drive |
||
|
Color |
White,blue,green,color can choose |
||
|
Front/rear overhang |
1535/2215 |
||
|
Max speed |
100 km/h |
||
|
Weight in KGS |
GVW |
25000 kg |
|
|
Curb weight |
15000 kg |
||
|
Loading capacity |
17000L |
||
|
Front axles loading capacity |
7.5T |
||
|
Rear axles loading capacity |
13 T*2 |
||
|
Engine |
Engine model |
MC07H.35-61 |
|
|
Engine type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
||
|
Horsepower |
350HP |
||
|
Max. output (kw) |
254Kw |
||
|
Rated speed |
1700rpm |
||
|
Maximum Torque |
1460N.m |
||
|
Displacement(L) |
7.36 L |
||
|
Emission standard |
Euro 6 |
||
|
Transmission |
HW19710,10 forward ,2 reserve |
||
|
Tire |
11.00R20 18PR standard tire,10 tires+1 spare tire |
||
|
Brake |
Air brake |
||
|
Steering |
Power steering |
||
|
Body |
Capacity |
17000L |
|
|
Structure |
TANK MATERAIL |
6mm,Q235 steel |
|
|
Pipe |
Galvanized pipe |
||
|
Discharge nozzle |
SS,at side bottom of tank,quick coupling |
||
|
Discharge nozzle option |
Stainless steel faucet |
||
|
Water pump |
Model |
CB10/60 fire water pump |
|
|
Flow rate(L/m): |
3Tons/min |
||
|
Head of delivery(m) |
90m |
||
|
Self-priming function(min/4m) |
1.5 |
||
|
Efficiency(%) |
95% |
||
|
Related rotate speed(r/min) |
1680 |
||
|
Water cannon system |
Canon NO. |
Adjustable water cannon head with 4 fixed single-sided installations |
|
|
Water cannon range |
50-80 m |
||
|
Coverage area |
2500 ㎡ |
||
|
Water time |
>5 minutes |
||
|
Max working pressure |
≥0.9Mpa |
||
|
Rotation type |
Hydraulic |
||


1. Heavy-Duty HOWO 6x4 Chassis
♦ Strong load-bearing capacity, stable driving on rugged mining roads.
♦ MC07H 350HP inline 6-cylinder turbo engine, peak torque 1460N·m, powerful climbing & hauling performance.
♦ HW19710 10-speed manual transmission + air brake + power steering, easy control under heavy load
♦ 11.00R20 18PR heavy-duty tires, durable for harsh mine terrain
♦ Max speed 100km/h, matched 4600+1350mm wheelbase for balanced weight distribution

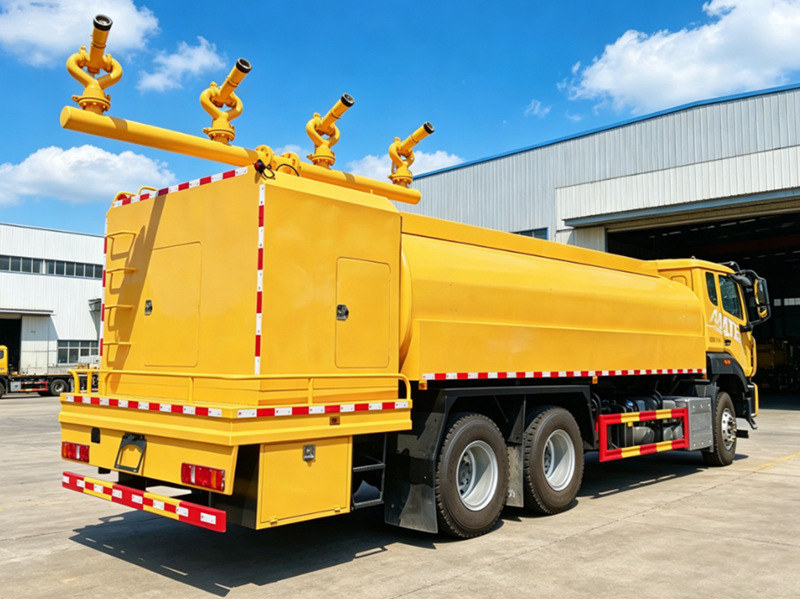

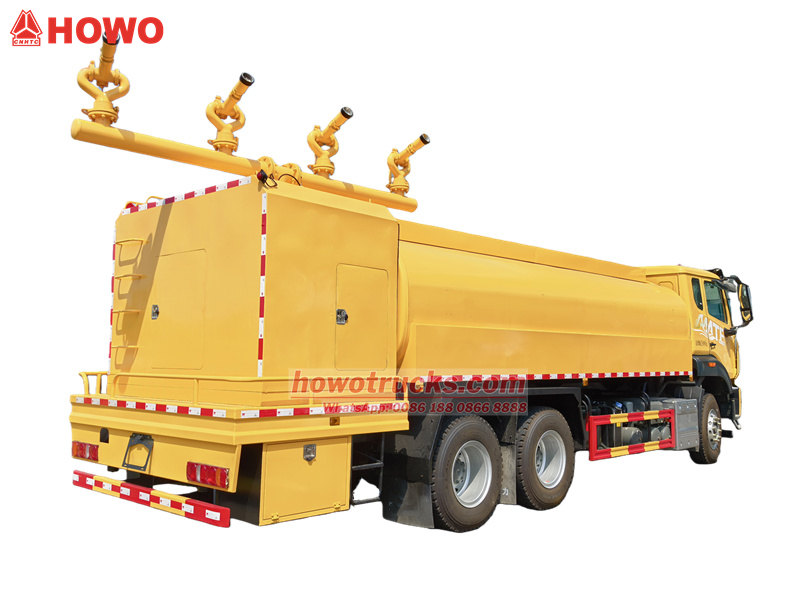

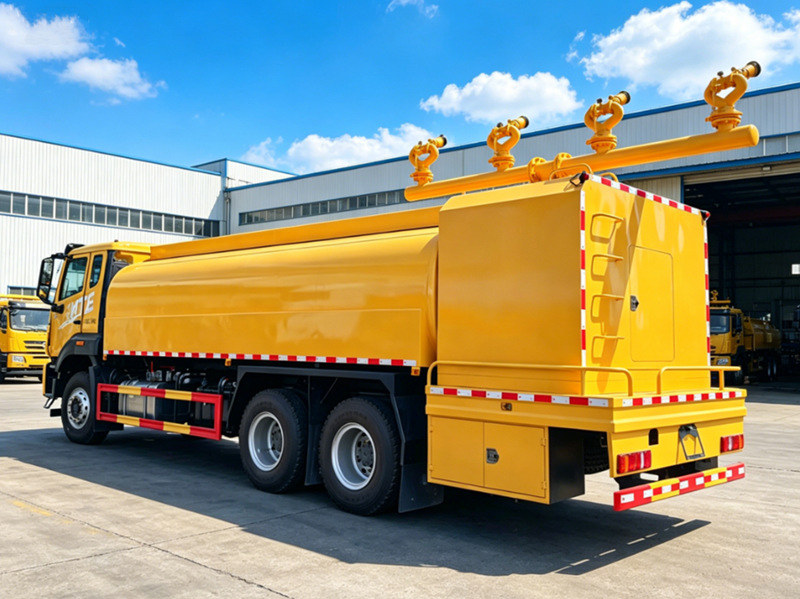

2. 17m³ Multi-Function Dust Suppression Upper Body

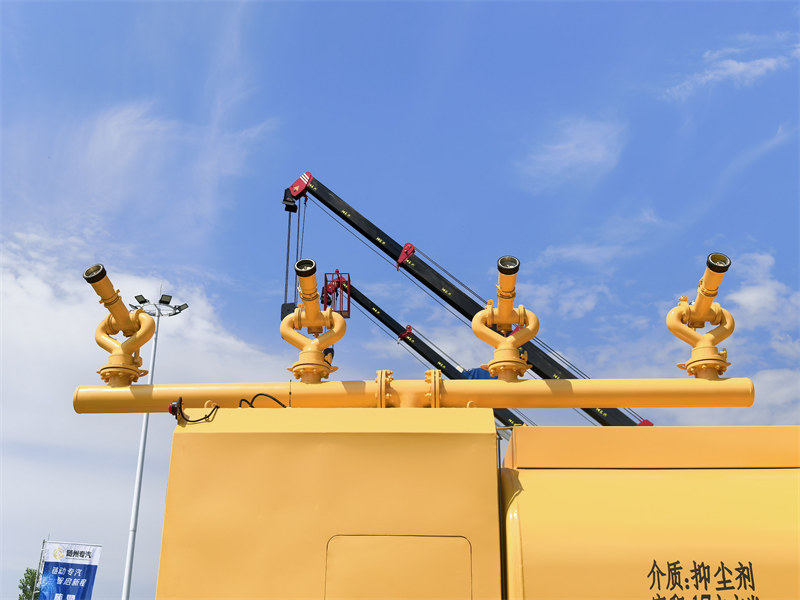

♦ 17000L large Q235 steel tank paired with hydraulic rotating 4 water cannons;
effective spray range 50–80m, single continuous working time over 5 mins
♦ Wide 2500㎡ coverage for blasting dust suppression, site washing & equipment cooling.
♦ 6mm thick Q235 steel tank + full galvanized pipeline, anti-corrosion &

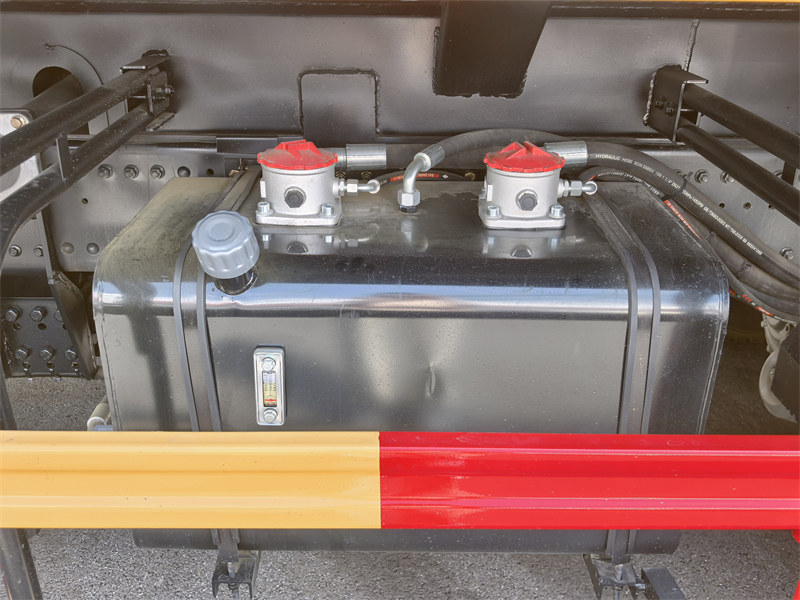

♦ Hydraulic cannon rotation system, low failure rate & minimal maintenance cost.

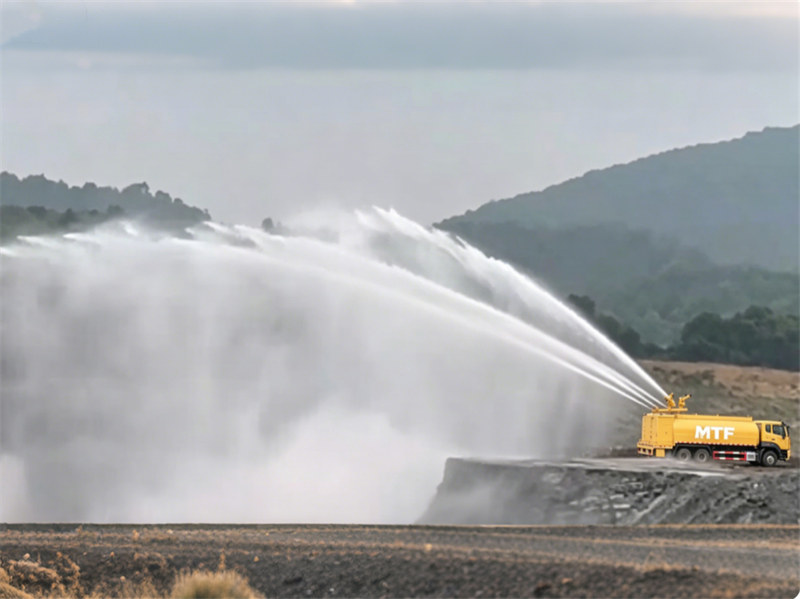

This HOWO multi-functional dust suppression truck boasts outstanding practical working performance for mining scenarios. It is fitted with four hydraulically rotatable water cannons and a high-flow CB10/60 water pump, delivering a long spraying range of 50–80 meters, sustained spraying over 5 minutes and wide coverage up to 2500㎡, which efficiently eliminates heavy dust generated during secondary blasting, ore transportation and pit excavation.

|
Canon NO. |
Adjustable water cannon head with 4 fixed single-sided installations |
|
Water cannon range |
50-80 m |
|
Coverage area |
2500 ㎡ |
|
Water time |
>5 minutes |
|
Max working pressure |
≥0.9Mpa |
|
Rotation type |
Hydraulic |
⇒ The production capacity of over 4,000 trucks every year.
⇒ Over 100 countries worldwide.
⇒ Complete after-sales service system.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
