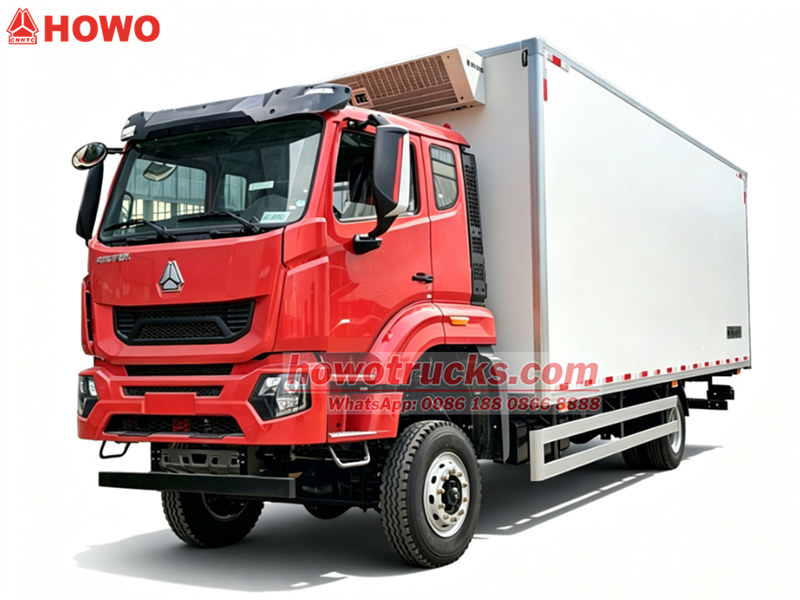

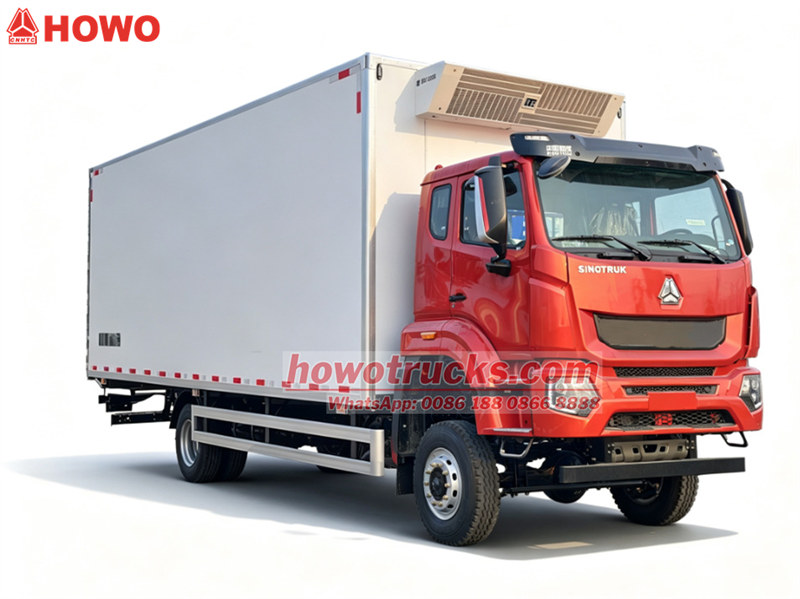

The HOWO 10 ton refrigerated truck is a reliable workhorse built for demanding long distance cold chain logistics. Powered by a durable Yuchai 220HP 6 cylinder engine, it delivers consistent, high performance power to handle diverse road conditions and keep your deliveries on schedule.Fitted with the KX 860 refrigeration unit, this freezer van offers intelligent temperature regulation. It automatically adjusts cooling output according to box internal temperature and cargo requirements, achieving precise temperature control. Fast cool down and steady temperature retention keep perishable cargo in ideal condition throughout the whole transit journey.
Pracovná kapacita :
10 tonsTyp kabíny :
HOWO M7 cabinPohonný systém :
4x2,LHD/RHDRázvor (mm) :
4600Špecifické pre motor :
220HP / YC6J220-331Prevodovka :
8JS85TE ,8-speed,manualPredná náprava (kg) :
7500Zadná náprava (kg) :
13000The HOWO 10 ton refrigerated truck is a reliable workhorse built for demanding long distance cold chain logistics. Powered by a durable Yuchai 220HP 6 cylinder engine, it delivers consistent, high performance power to handle diverse road conditions and keep your deliveries on schedule.
Fitted with the KX 860 refrigeration unit, this freezer van offers intelligent temperature regulation. It automatically adjusts cooling output according to box internal temperature and cargo requirements, achieving precise temperature control. Fast cool down and steady temperature retention keep perishable cargo in ideal condition throughout the whole transit journey.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS GROUP LIMITED
Performance Features
🟢 ✓ Built on HOWO M7 4x2 heavy‑duty chassis with 220HP Yuchai engine for stable long‑haul cold‑chain transport.
🟢 ✓ 105mm fully‑closed sandwich FRP‑PU panels deliver excellent thermal insulation for the cargo box.
🟢 ✓ KX‑850 refrigeration unit supports adjustable box temperature ranging from ‑15℃ to +20℃ for diverse cargo.

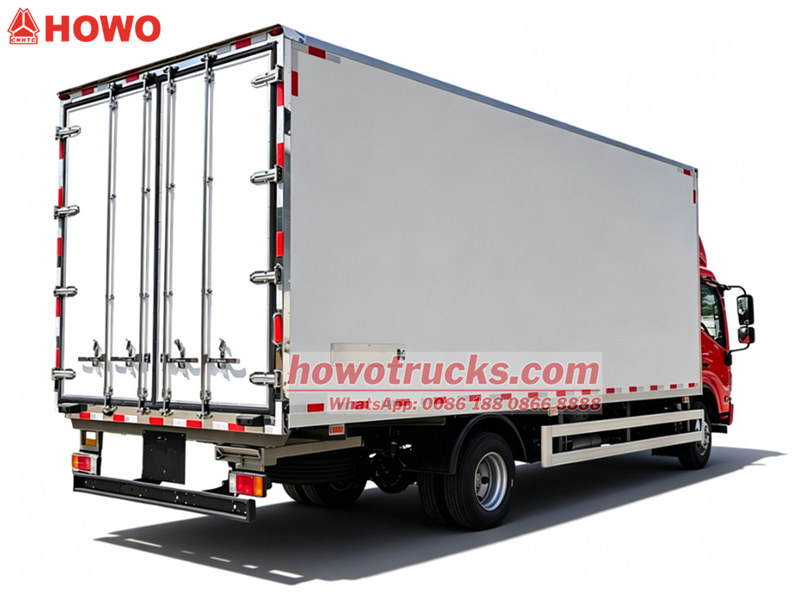

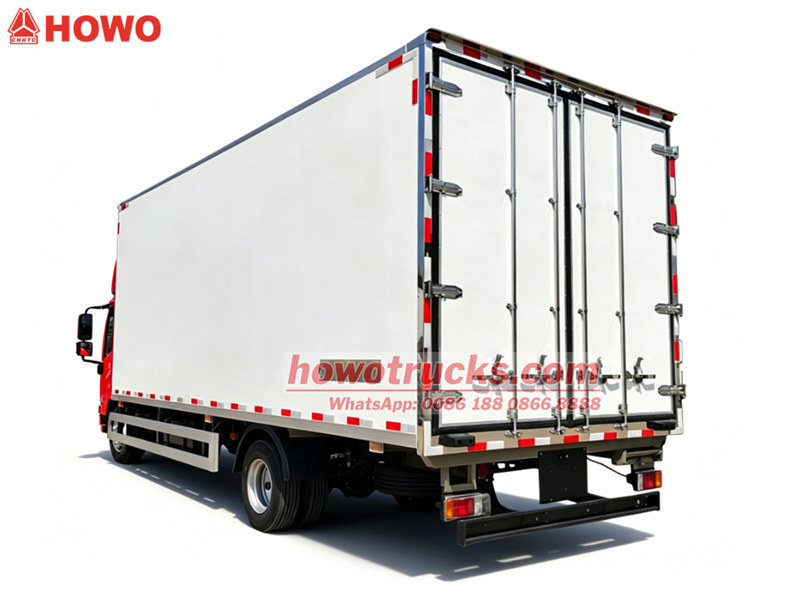

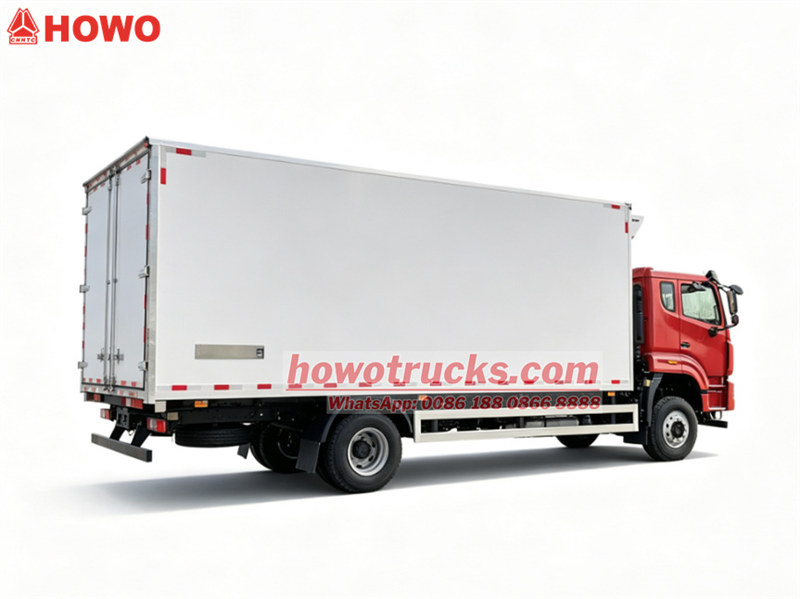

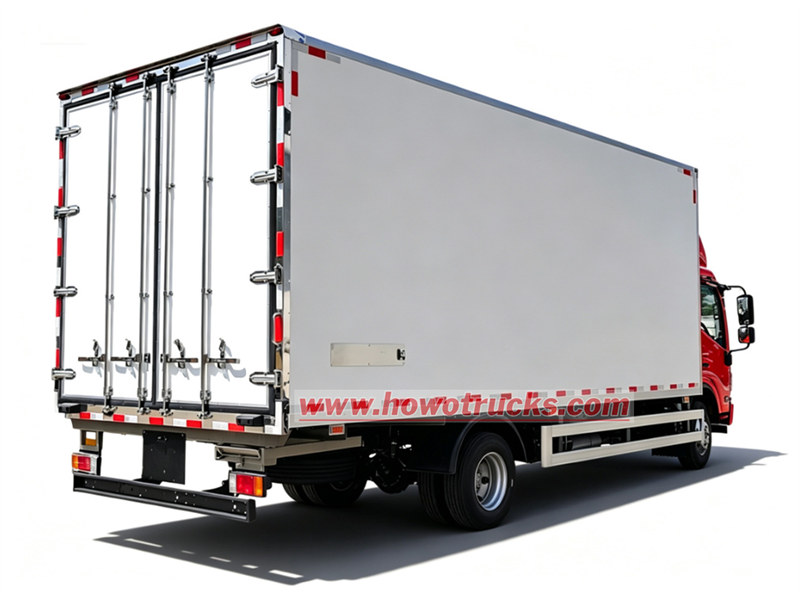

🟢 ✓ Spacious 5300×2450×2500mm insulated body adopts wear‑resistant flooring and full‑size double rear doors.
🟢 ✓ Flexible custom options cover multi‑zone compartments, premium refrigeration brands, camera and hanging systems.
|

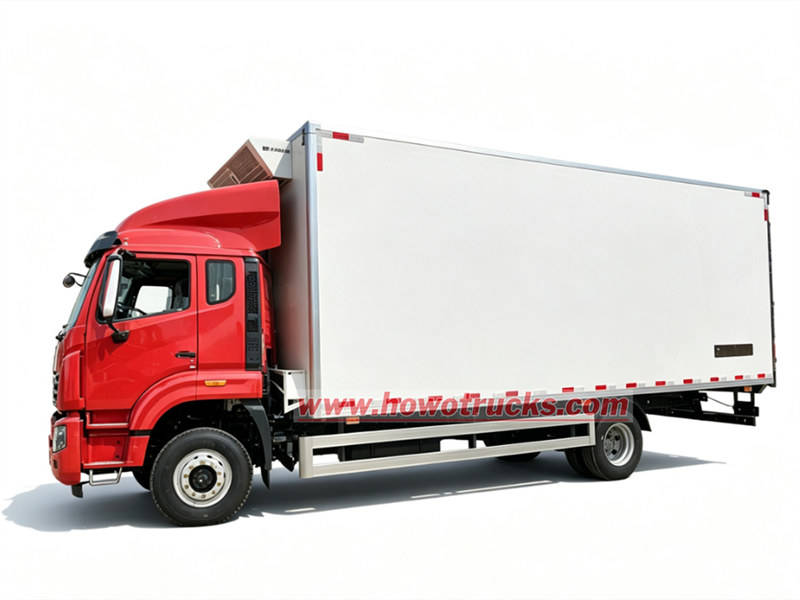

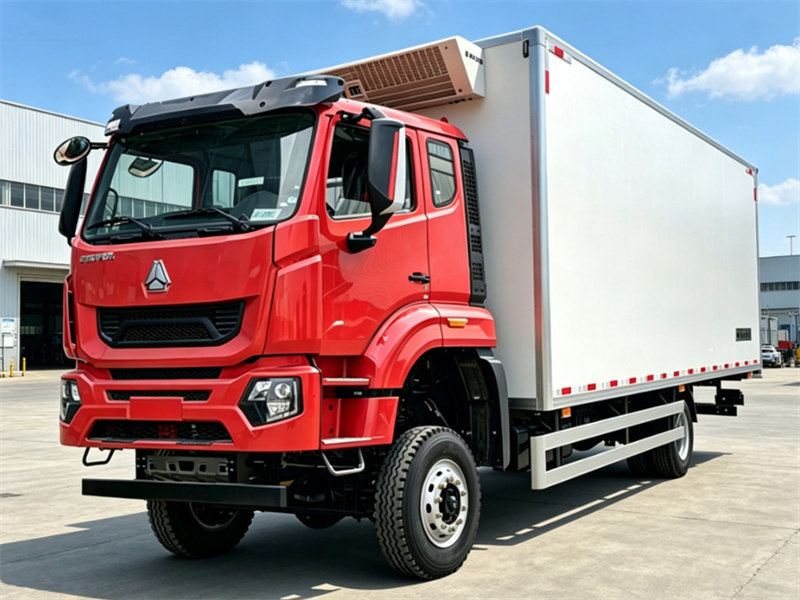

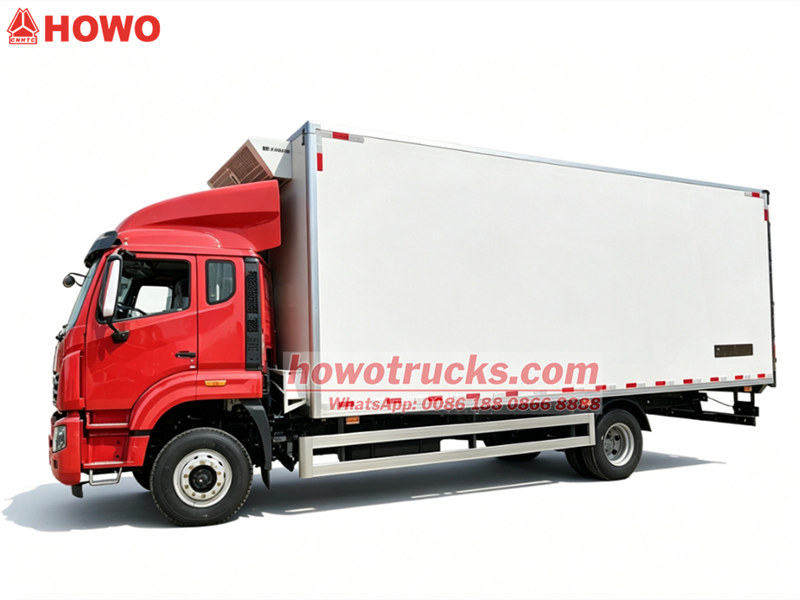

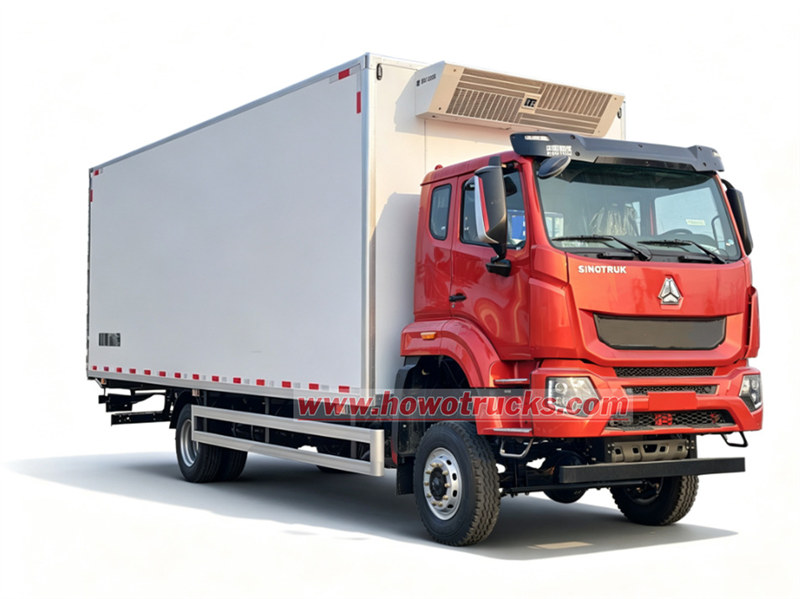

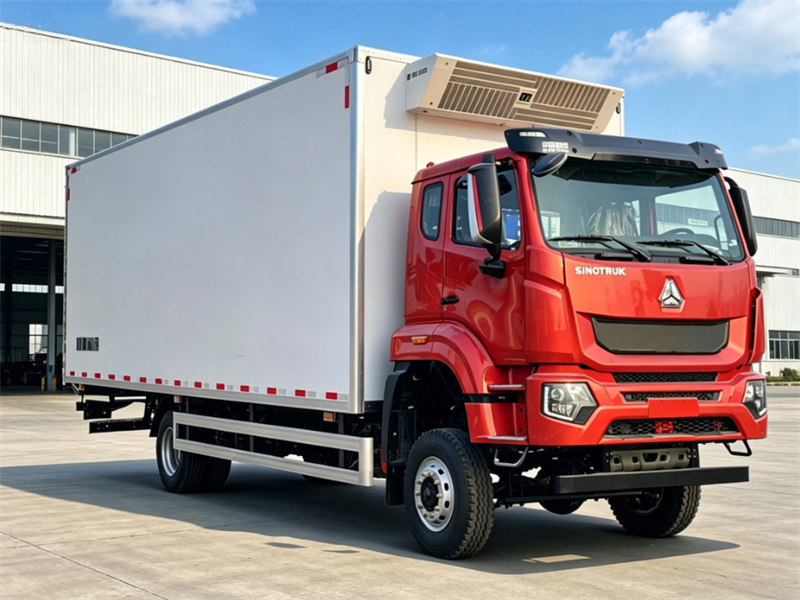

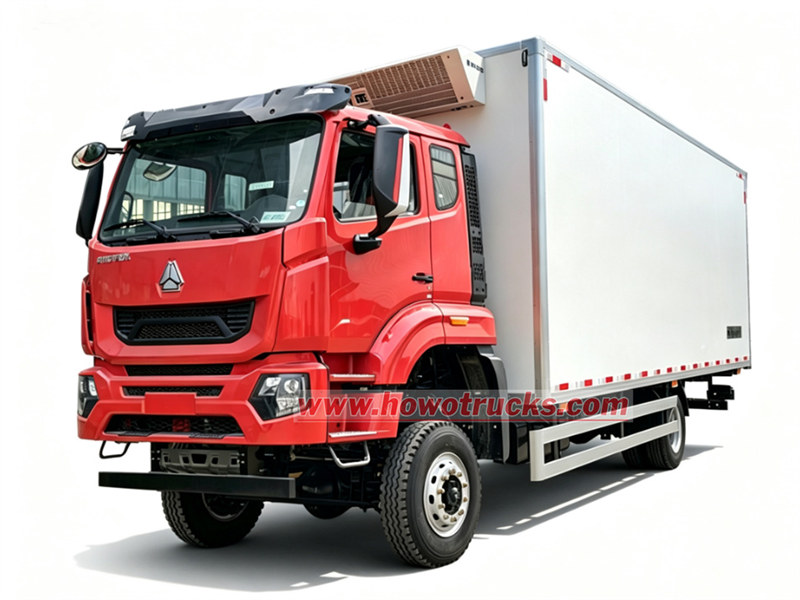

HOWO M7 10tons Freezer Van Truck |
||
|
Vehicle Model |
CSC51803GXQ |
|
|
Basic Information |
Drive Type |
4x2 |
|
Vehicle Dimensions |
8300x2500x3150 mm |
|
|
Wheelbase |
4600 mm |
|
|
Tire model |
10.00R20 |
|
|
Maximum Speed |
95 km/h |
|
|
Curb Weight |
8600 kg |
|
|
Gross Vehicle Weight |
18000 kg |
|
|
Engine Parameters |
Engine Model |
YC6J220-331 |
|
Maximum Horsepower |
220HP |
|
|
Displacement |
6.49L |
|
|
Emission Standard |
Euro 3 |
|
|
Fuel Type |
Diesel |
|
|
Cooling performance |
Cargo Body Size |
5300*2450*2500 |
|
Panel Material |
FRP + PU Foam + FRP 105mm |
|
|
Panel Structure |
All Closed Sandwich |
|
|
Rear Door Type |

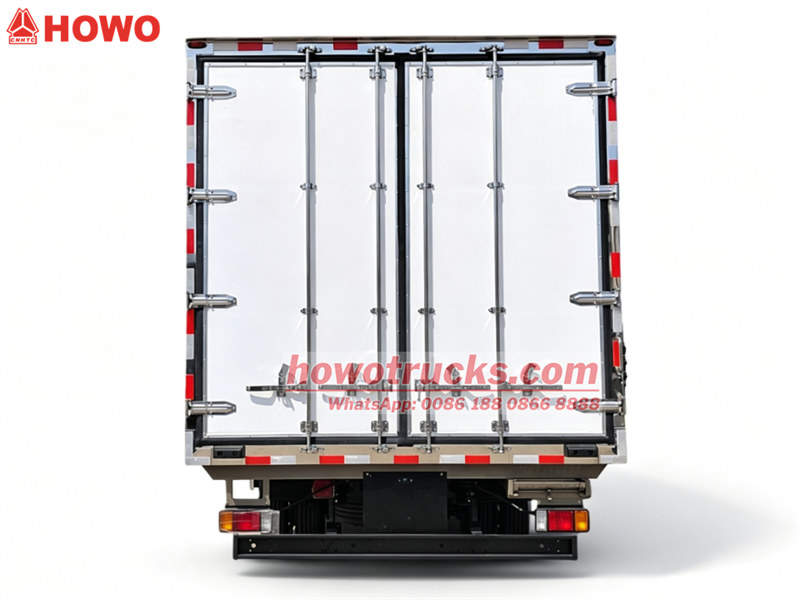

Full Size Double Opening Rear Door |
|
|
Flooring |
Antiskid and abrasion resistant |
|
|
Refrigeration Unit |
KX 850 |
|
|
Body Space Temp |
-15 degree~ +20 degree |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Color & LOGO |
According to wish |
|
|
Optional Equipment |
1, Refrigeration brand: KAIXUE, Carrier, Thermoking, DAIKIN (with any brand) 2, Rear vision camera 3, Aluminium flooring, Hanging system 4, Optional Dual temperature, multi compartment |
|
♦ High-Quality Materials:
--- Inner and outer skins are constructed of high-quality fiberglass reinforced plastic (FRP) or pre-coated aluminum panels, offering exceptional corrosion, rust, and weather resistance.
--- The core material is fluorine-free, environmentally friendly, low-K (low thermal conductivity) polyurethane foam, injected through high-pressure foaming to achieve uniform density and excellent thermal insulation.
♦ Sandwich Panel Bonding:
--- A high-strength adhesive combined with mechanical pressing is used, rather than simple screw fastening.
--- The panels are securely connected and sealed, eliminating thermal bridges and ensuring the overall thermal insulation performance of the body.
--- High-strength alloy corner guards are installed at the four corners of the body to enhance overall structural integrity.
♦ Floor Structure:
--- A 3-5 cm high-strength profile (such as aluminum) is used as the frame, filled with insulation material.
--- The upper surface is clad with non-slip, corrosion-resistant aluminum patterned plate or composite material, designed to withstand the impact and wear of forklift operations and heavy cargo.
This HOWO M7 10‑ton freezer van is fitted with a self‑contained refrigeration unit, which operates independently of the truck’s main engine. It maintains consistent cooling even when the vehicle is idling, stopped for loading‑unloading, or parked for extended periods, effectively preventing cold‑chain breakage.

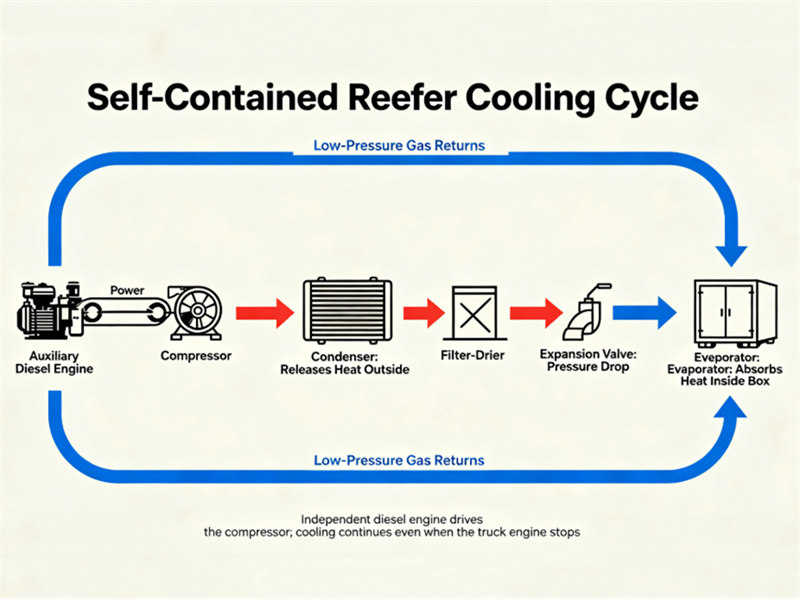

The unit runs on a closed refrigerant circulation loop. Its built‑in auxiliary diesel engine drives the compressor, compressing low‑pressure, low‑temperature refrigerant gas into high‑pressure, high‑temperature gas. The hot gas flows to the condenser to dissipate heat out of the cargo box. After passing through the filter‑drier and expansion valve, the refrigerant enters the evaporator inside the van, where it absorbs heat and rapidly lowers the box temperature. The vaporized refrigerant then returns to the compressor to start the next cooling cycle.
Beyond basic cooling performance, this self‑powered system delivers continuous temperature control, fast cool‑down and reliable heat preservation. It keeps frozen food, fresh produce, pharmaceuticals and other temperature‑sensitive cargo at ideal conditions throughout the whole transit, no matter how complex the transport conditions are.
Advantage Feature:
♦ Powerful Heat Exchange Capacity: Advanced condenser and evaporator design with optimized fin structure ensures high heat dissipation efficiency and minimizes cooling loss even at high temperatures (above 45°C).
♦ All-Area Environmental Adaptability: Key components (compressor, controller, sensors) undergo rigorous high and low temperature, vibration, and salt spray testing to ensure long-term stable operation in extreme climates and complex road conditions.
♦ Intelligent Fault Diagnosis and Early Warning: Equipped with a comprehensive self-diagnostic system, it provides early warnings of potential faults (such as filter blockage or sensor malfunction) rather than reactive alarms.
1. Reliable Chassis & Powertrain
♦ 4×2 heavy duty HOWO M7 chassis, 220HP Yuchai engine, delivers steady power for long distance cold chain transportation
♦ Reasonable wheelbase and load bearing design, meets 18 ton GVW requirement, adapts to various road conditions
♦ Mature chassis accessories, easy spare parts procurement and low maintenance cost
2. High Performance Insulated Cargo Body & Refrigeration System
♦ 105 mm closed sandwich FRP PU panels, outstanding heat insulation performance to reduce energy consumption
♦ KX 850 refrigeration unit, temperature adjustable from 15℃ to +20℃, fits multiple cold chain goods
♦ Wear resistant floor and full size double rear doors; supports optional multi compartment, famous brand refrigeration units and auxiliary configurations
● China best freezer van truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service
⇒ Products--100% Customized Level One!
⇒ Transportation--100% Safety, Convenience, Efficient!
⇒ Services--7days + 24hours Safetify Service!
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
